Transform your bikes handling with our Offset Bushings
Every bushing is made to order, so we can produce them for virtually any frame and shock combination.
- Produced in under 48hrs

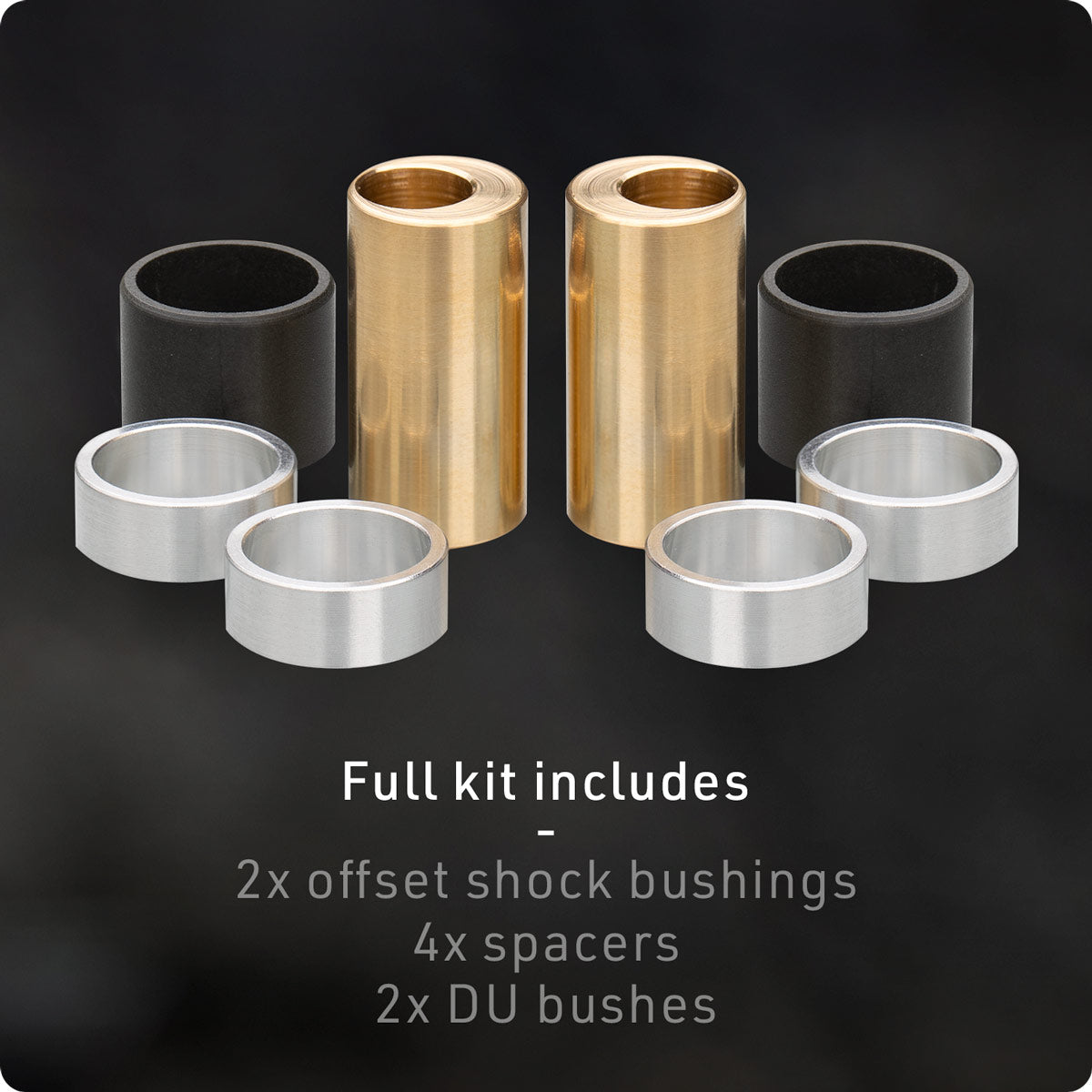

- Includes a pair of igus® DU bushes*
- Worldwide delivery - Learn more
- Designed to improve your bikes geometry by slackening the head angle and lowering the bottom bracket. This improves stability and cornering ability. Not designed to be used in reverse.
- Functions much like a Flip Chip - compatible with most bikes already using a Flip Chip too.
- 12.7mm (1/2") diameter - fits all Fox, RockShox and many other shocks. Not compatible with BOS or pre 2012 Manitou. Learn more.
- Machined to high tolerances from Brass with Aluminium spacers. Learn more.
- For the most notable change, we recommend a pair of bushings. This is what 99% of customers order.
- Simple installation with no special tools needed.
*DU bushes not included for Cane Creek shocks using a 14.7mm diameter eyelet.
Average adjustment - per pair of Offset Bushings
- 6mm bolt - 3mm offset each, 6mm total ~ 1.5° head angle adjustment.
- 8mm bolt - 2mm offset each, 4mm total ~ 1.0° head angle adjustment.
- 10mm bolt - 1mm offset each, 2mm total ~ 0.5° head angle adjustment.
- 3/8" bolt (old Santa Cruz) also supported.
Commonly ordered sizes
Please note there is a £5 surcharge for sizes over 55mm. There is a £10 surcharge for 59.9mm +. We will contact you after ordering if your frame uses this hardware.
- 14x10mm
- 15x10mm
- 15.7x8mm
- 16.5x8mm
- 19x8mm
- 19x6mm
- 20x6mm
- 20x8mm
- 20x10mm
- 21.8x8mm
- 22x8mm
- 22x6mm
- 22.2x8mm
- 22.2x10mm
- 25x8mm
- 30x8mm
- 34x8mm
- 35x8mm
- 40x8mm
- 40x10mm
- 42.2x8mm
- 50x8mm
- 54x10mm
- 60x10mm
