Offset Bushing
The only details we need are your frame & shock models when ordering - we then look for the dimensions in our extensive database, saving you the hard work. Just note the models in the box above. That means in 99% of cases, you never need to measure a thing. If you already know what size you require, just select it from the list below. If it's not shown, note it in the box.
Transform your bike's handling with our Offset Bushings
Here at Offset we've been producing Shock Hardware kits since 2010. They've been tested by riders competing in everything from the Red Bull Rampage to the UCI Downhill World Cup and beyond. We're proud of our reputation in the industry, with over 25,000 riders worldwide running our products.

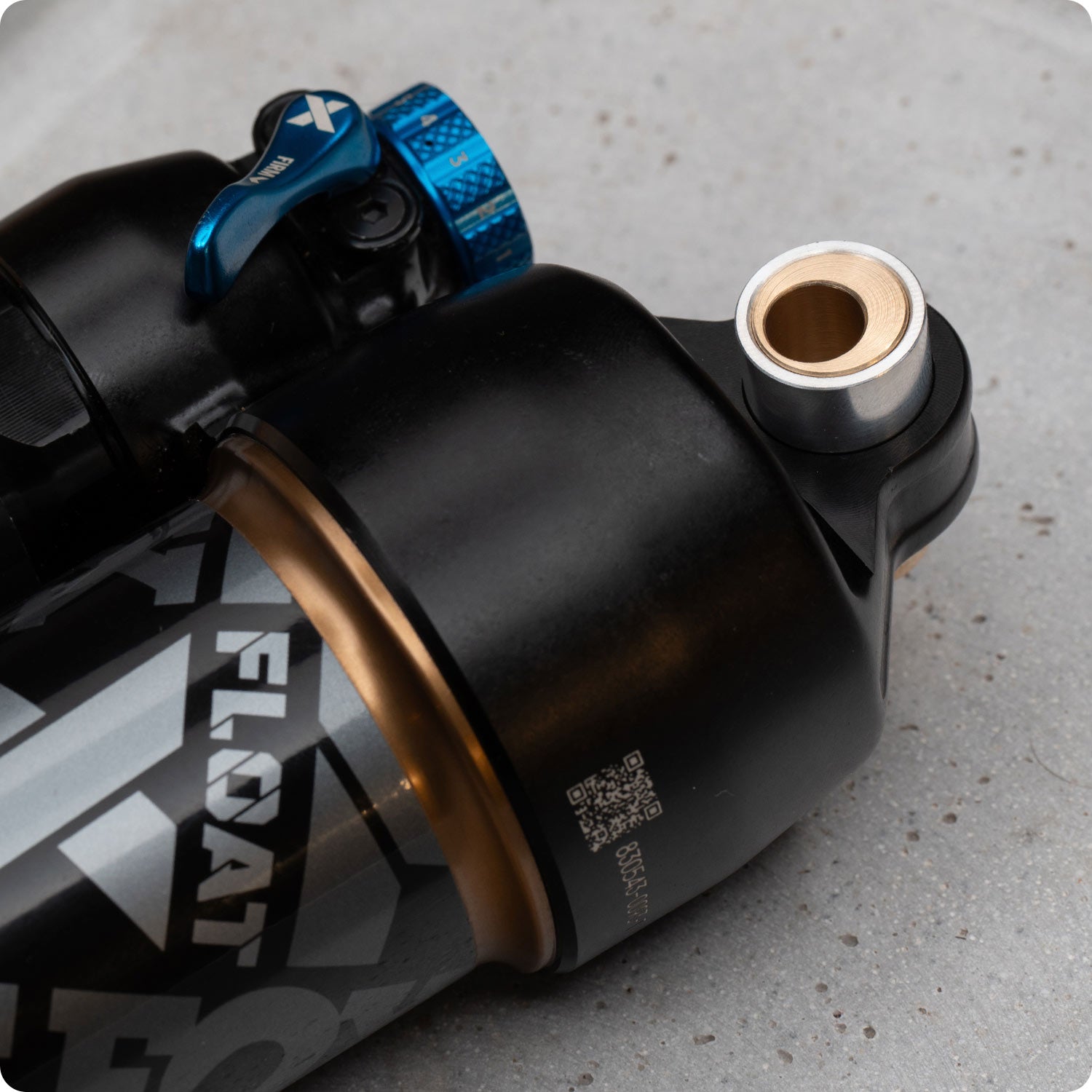

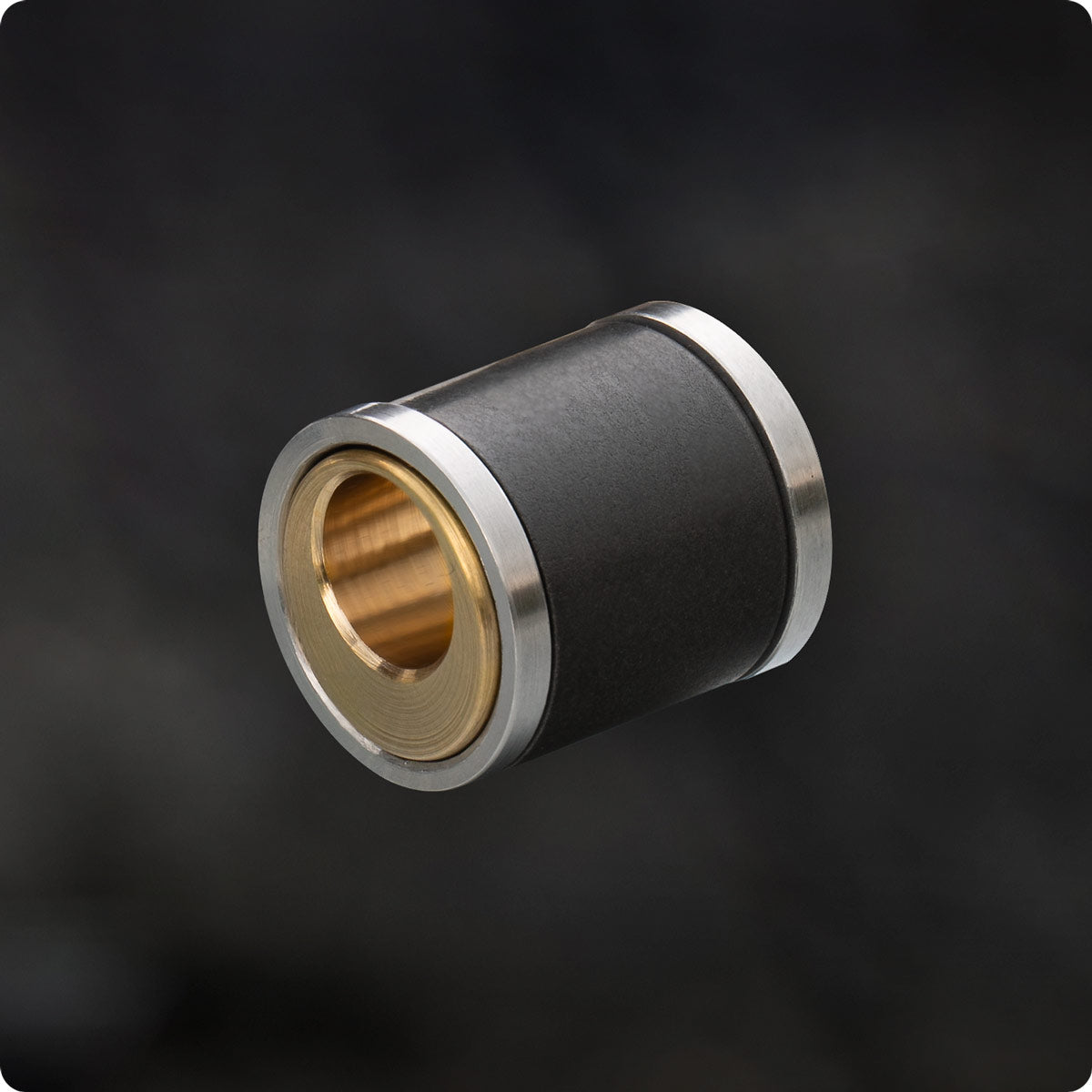

This right here, is our classic Offset Bushing. We machine them to fit your specific bike / shock combination in under 2 days.
- Improve stability & cornering performance by tweaking your bike's geometry - learn more
- Trusted by Experts: Recommended by professional race teams, leading bike brands and local bike shops
- Highly Rated: Backed by glowing 5-star reviews from satisfied riders worldwide
- Worldwide Shipping: Fast, reliable delivery to anywhere on the globe - learn more
- Includes a high-quality igus® DU bush
- Compatible with all major brands, such as Fox, Rockshox, Cane Creek, DVO, Marzocchi, EXT, Push & more - 12.7mm diameter
- Precision machined from Brass with Aluminium spacers for exceptional performance and durability - learn more
- Made to order for your bike in 2 days
- For the most notable change, we recommend a pair of bushings
- Functions much like a Flip Chip
- Simple Installation: User-friendly design for hassle-free setup - Learn more
These are per bushing, double this when using a pair.
- 6mm bolt - 3mm offset, ~ 0.75° head angle adjustment
- 8mm bolt - 2mm offset, ~ 0.5° head angle adjustment
- 10mm bolt - 1mm offset, ~ 0.25° head angle adjustment
- 3/8" bolt (old Santa Cruz) also supported
Note: clearance required around eyelet will match the offset amount
- Standard 12.7mm (1/2") diameter
- Designed to shorten the shock e2e only
- DU bushes not designed for Cane Creek shocks using a 14.7mm diameter eyelet
Most bikes use bushings under 49mm wide, we have a surcharge for sizes above this. - 49mm - 54mm £5 surcharge per bushing
- 55mm - 60mm £10 surcharge per bushing
- 61mm + please contact us
Don't forget about these

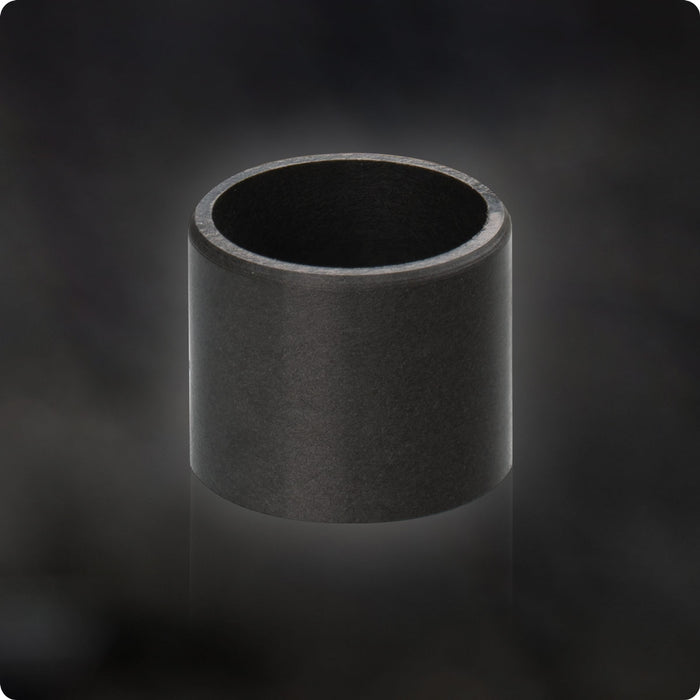

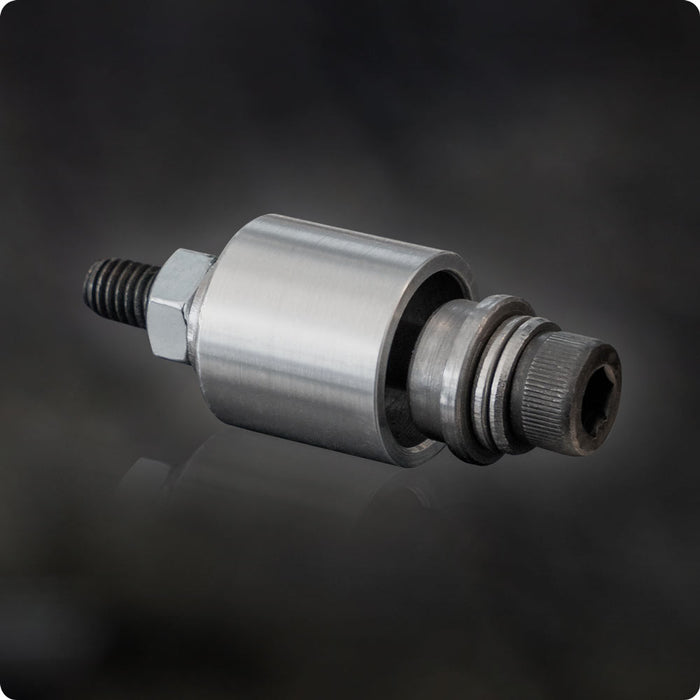

Our high quality, long lasting DU bushes are produced by the industry leader - igus. We also offer a custom tool designed for the installation and removal of these. A must have for any home mechanic.
