Offset Bushings | Trek DRCV / RE:aktiv Shock Conversion Kit
The only details we need are your frame & shock models when ordering - we then look for the dimensions in our extensive database, saving you the hard work. Just note the models in the box above. That means in 99% of cases, you never need to measure a thing. If you already know what size you require, just select it from the list below. If it's not shown, note it in the box.

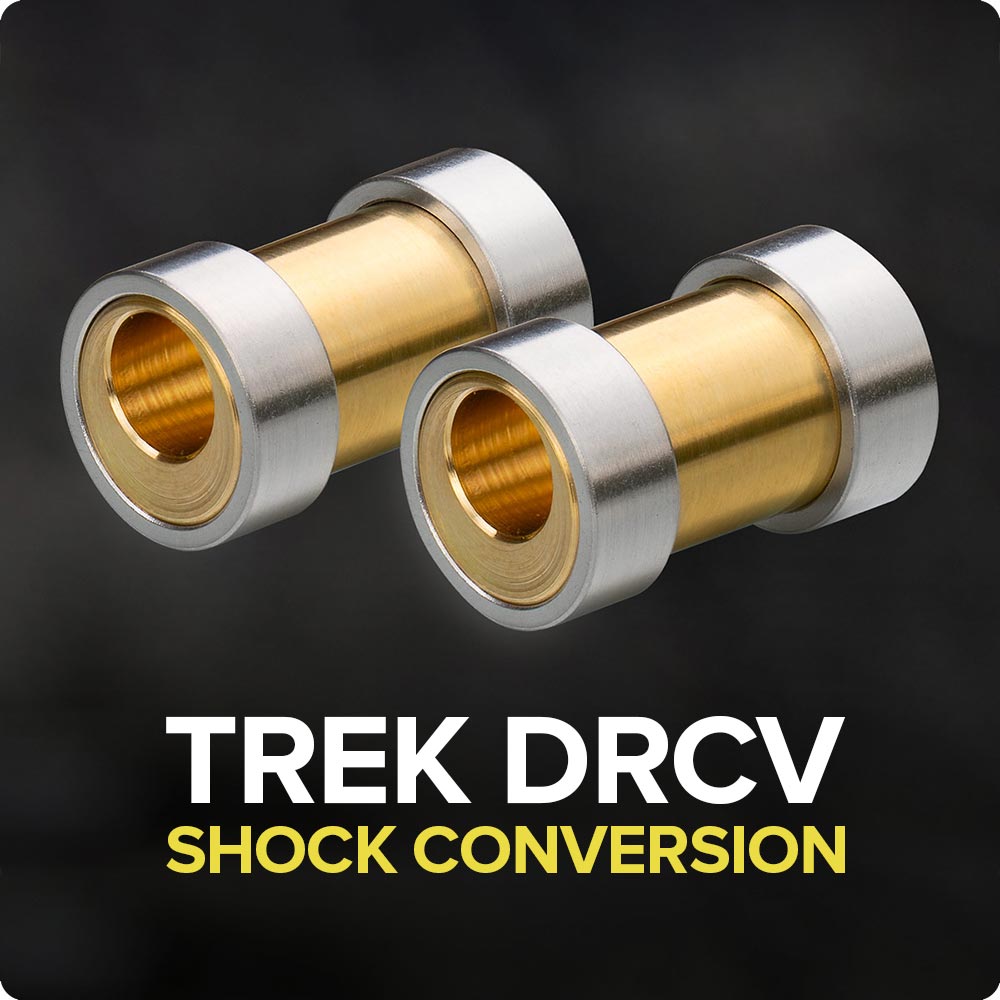

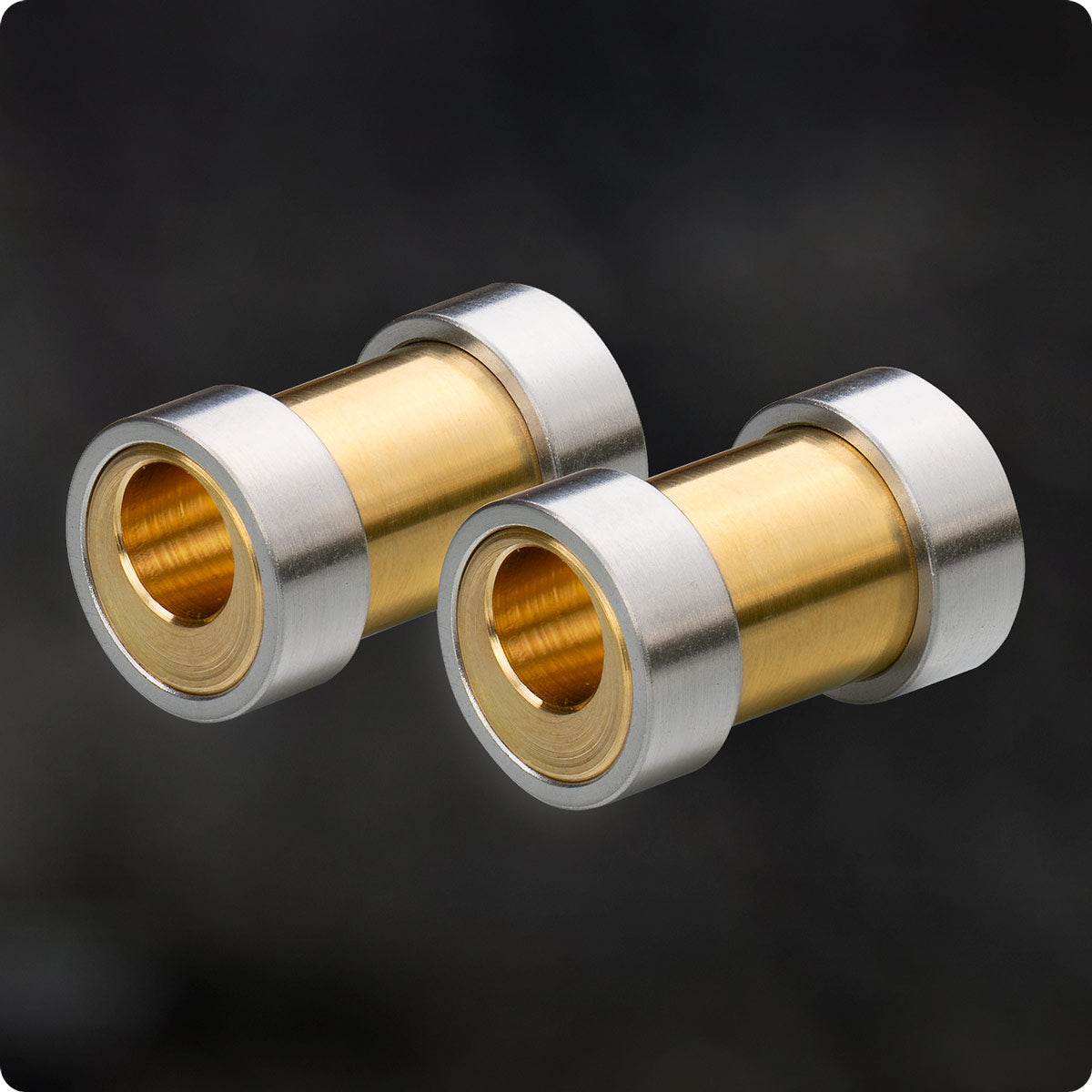

Looking to upgrade from your stock shock on a Trek frame? You'll need our bushing conversion kit! This has been one of our most popular Offset Bushing kits over the years so we've decided to offer it as a stand alone product.
Trek commonly use unique shock sizes such as 197mm which aren't commonly available for aftermarket shocks. Our conversion kit reduces the new shock length by 3mm overall, allowing you to use a 200mm shock which readily available without adjusting the geometry negatively.

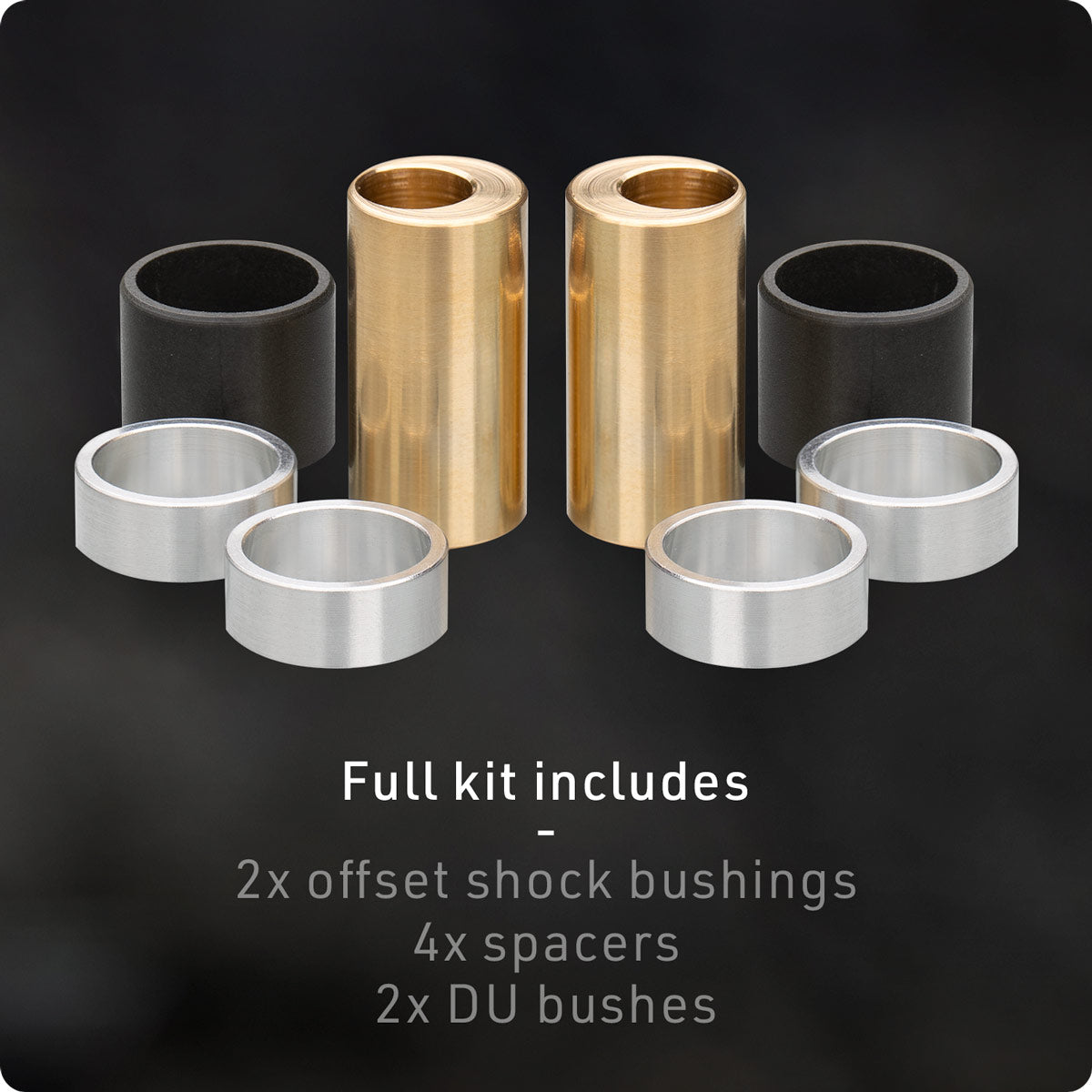

- Includes a pair of standard size (12.7mm) igus® DU bushes.
- Compatible with many Trek frames, such as Remedy / Fuel / Slash for 2016 and earlier. If your frame is 2017 + this will not work. Please contact us for an alternative.
- Sizes are 39.9x8mm (lower) and 39.9x10mm (upper). Please note that the product photo does not reflect this. Proper photos on their way!
- Replacement upper bolt is not included as these vary between frames, though are easily sourced from your local bolt store (10mm diameter).
- Machined to high tolerances from Brass with Aluminium spacers.

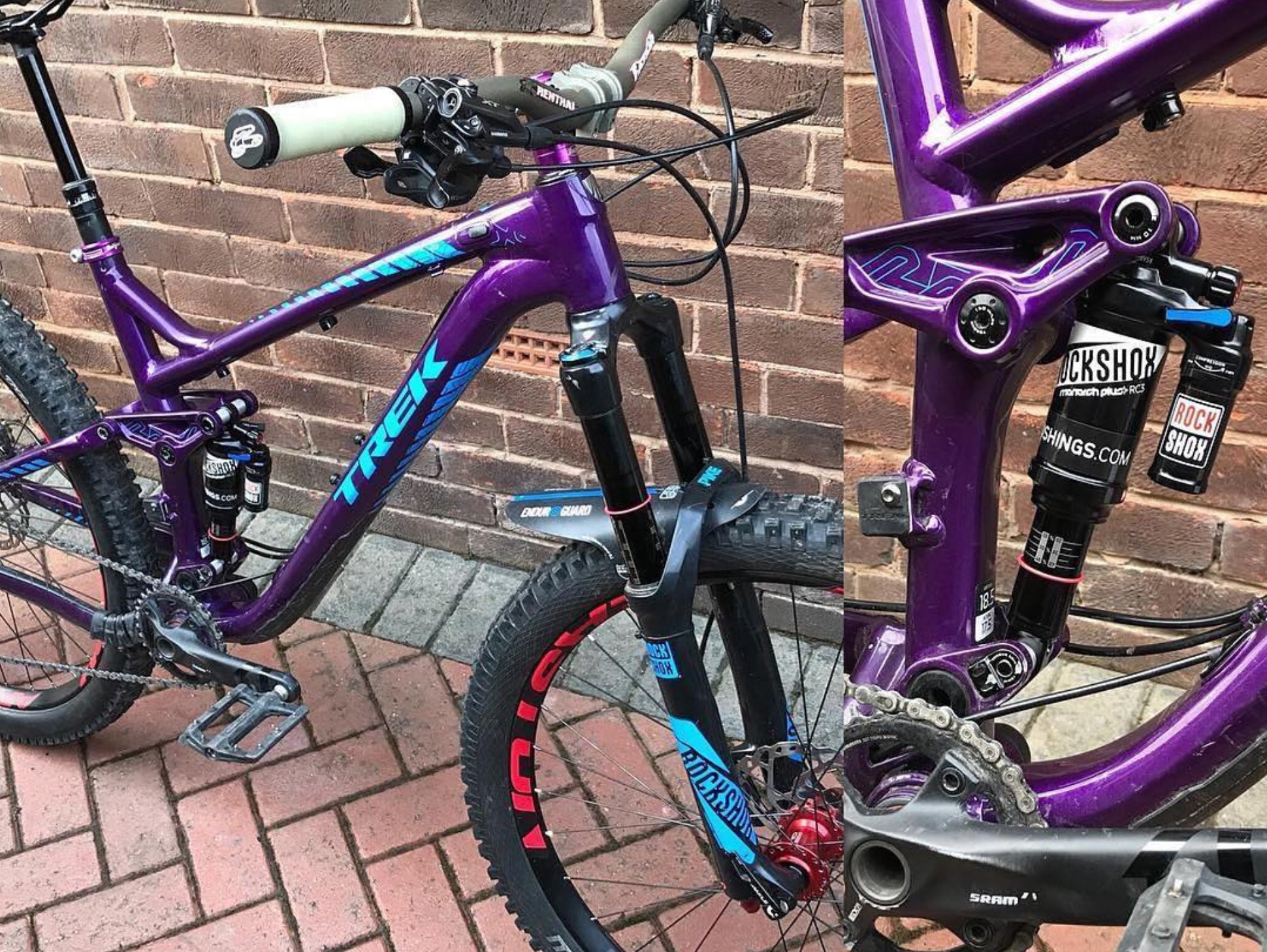

- Replace your out of date DRCV / RE:aktiv shock with a modern shock to greatly improve performance.
- Very simple to install with no special tools needed.
- Fast machining and shipping time!
- Worldwide delivery
These are per bushing, double this when using a pair.
- 6mm bolt - 3mm offset, ~ 0.75° head angle adjustment
- 8mm bolt - 2mm offset, ~ 0.5° head angle adjustment
- 10mm bolt - 1mm offset, ~ 0.25° head angle adjustment
- 3/8" bolt (old Santa Cruz) also supported
Note: clearance required around eyelet will match the offset amount
- Standard 12.7mm (1/2") diameter
- Designed to shorten the shock e2e only
- DU bushes not designed for Cane Creek shocks using a 14.7mm diameter eyelet
Most bikes use bushings under 49mm wide, we have a surcharge for sizes above this. - 49mm - 54mm £5 surcharge per bushing
- 55mm - 60mm £10 surcharge per bushing
- 61mm + please contact us
Don't forget about these

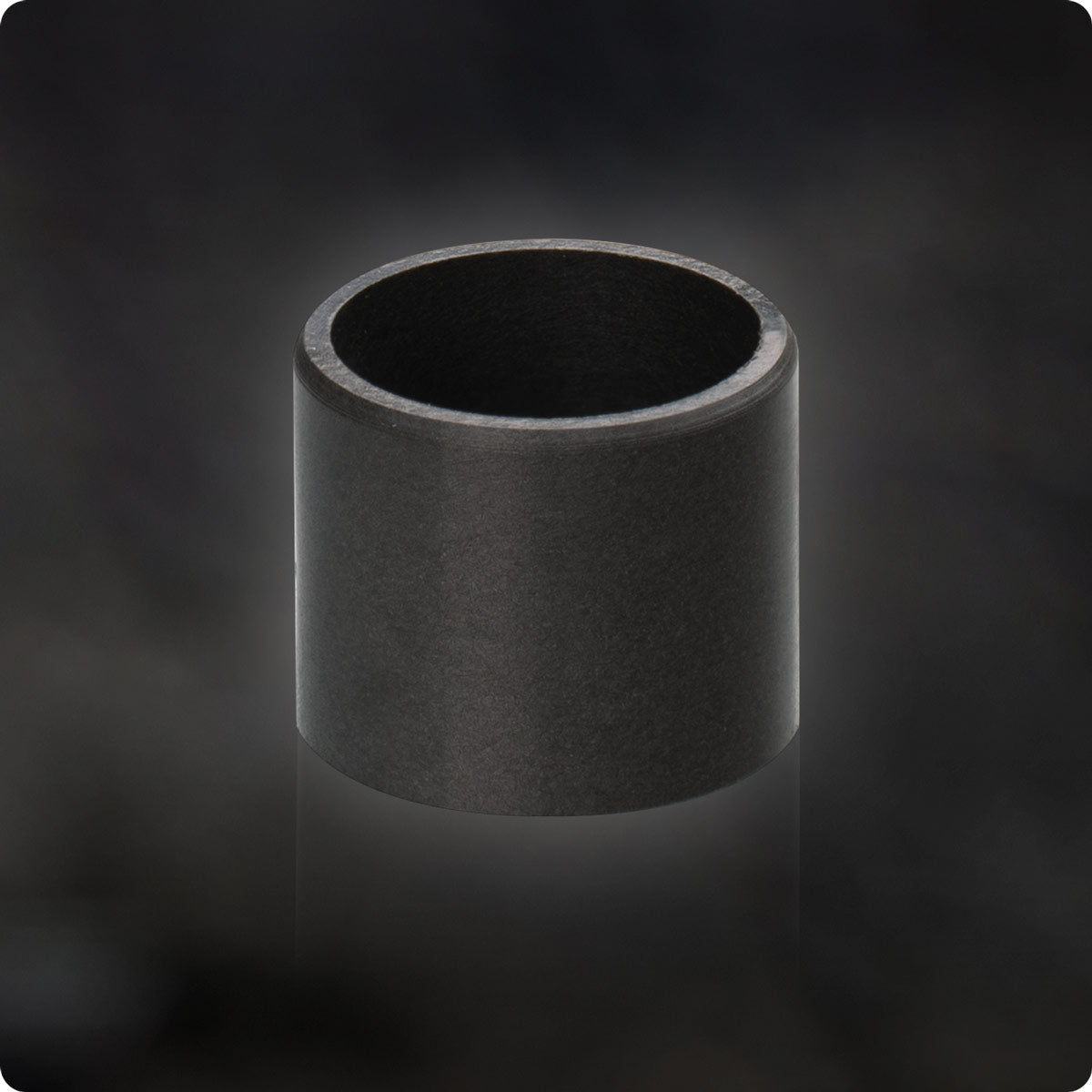

Our high quality, long lasting DU bushes are produced by the industry leader - igus. We also offer a custom tool designed for the installation and removal of these. A must have for any home mechanic.
